Automatic Home/Garden Water Pump

GC-AW 6333

Item no.: 4176730 EAN: 4006825609226
  • Electronic flow switch with practical LED display
  • Automatic operation
  • Large water filling nozzle
  • Pre-filter with built-in non-return valve
  • Built-in electronic dry-running protection
  • Water drain plug
  • Brass inlet connection
  • Plastic pressure connection
  • Practical carrying handle
  • High-quality plastic pump housing
See more information
Show less information
einhell-classic-automatic-home-garden-water-pump-4176730-productimage-001
Article description

The automatic domestic water pump GC-AW 6333 is a powerful appliance for the extraction of clear water from reservoirs, wells and water shafts for use in irrigation or for service water supply. Its electronic flow switch with LED display and automatic function switches the pump on and off automatically when water is drawn off. With its 630-watt motor, the device pumps up to 3,300 litres of water per hour from a maximum depth of 8 m. This is achieved with discharge pressures of up to 3.6 bar, which is equivalent to a maximum delivery height of 36 meters. The automatic domestic water pump has a pre-filter with an integrated non-return valve, which improves the water quality and reduces contamination of the pump. The appliance also has a built-in electronic dry-running protection, which prevents the pump from overheating. The water pump is equipped with a large opening for easy filling. Residual water can be drained via a convenient water drain plug on the bottom. The metal inlet connection and the plastic pressure connection, as well as the robust plastic pump housing, are manufactured to high quality standards to ensure a long service life. The practical carrying handle makes the device easy to transport, and the domestic water system is quickly ready for use anywhere.

See more information
Show less information

Technical details

Max. delivery height
36 m
Max. delivery pressure
3.6 bar
Max. delivery rate
3300 l/h
Max. suction height
8 m
Max. water temperature
35 °C
Power
630 W
Power cable length
1.5 m
Pressure connection type
33,3 mm (R1 IG)
Product weight
7.75 Kg
Suction connection type
42 mm (R11/4 AG)

Flexible, compact and powerful!

The powerful all-rounder featuring innovative Einhell pump technology

Thanks to its 630-watt motor, the Einhell automatic domestic water pump GC-AW 6333 can move up to 3,300 litres of water per hour. A thermal overload protection prevents the motor from damage due to overheating. Equipped with a practical carrying handle, the pump can be transported to anywhere it is needed to be used, and mounted there via the holes on the pump base. An integrated pressure switch ensures constant water supply, as the pump is switched on automatically when the pressure drops.

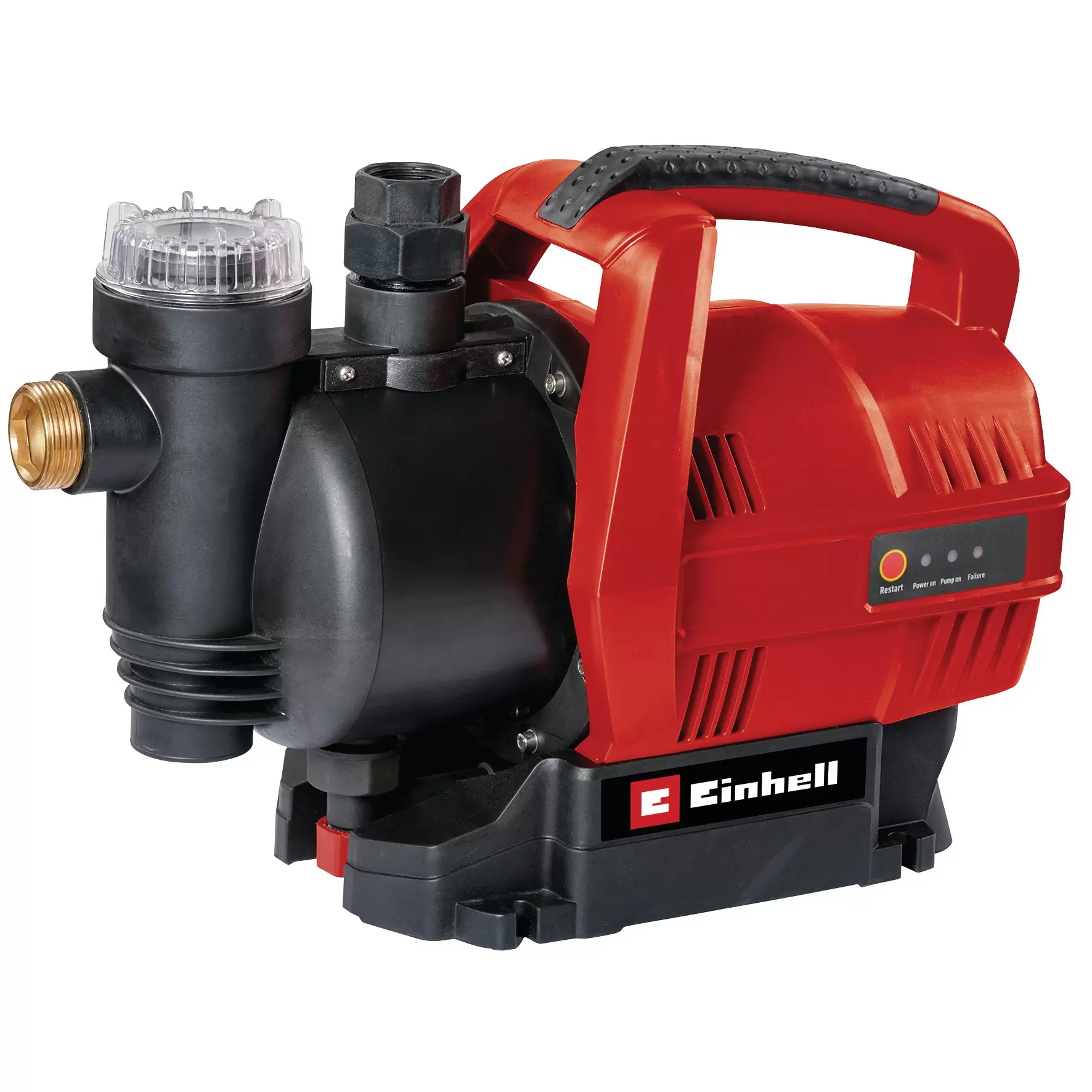

The Einhell automatic domestic water system GC-AW 6333 with red motor housing, black body, built-in pre-filter and carrying handle on a white background.
Side view of the Einhell automatic domestic water system GC-AW 6333 with a visible non-return valve and a red housing.

Integrated non-return valve

The integrated non-return valve prevents water from flowing back unintentionally when the pump is stopped.

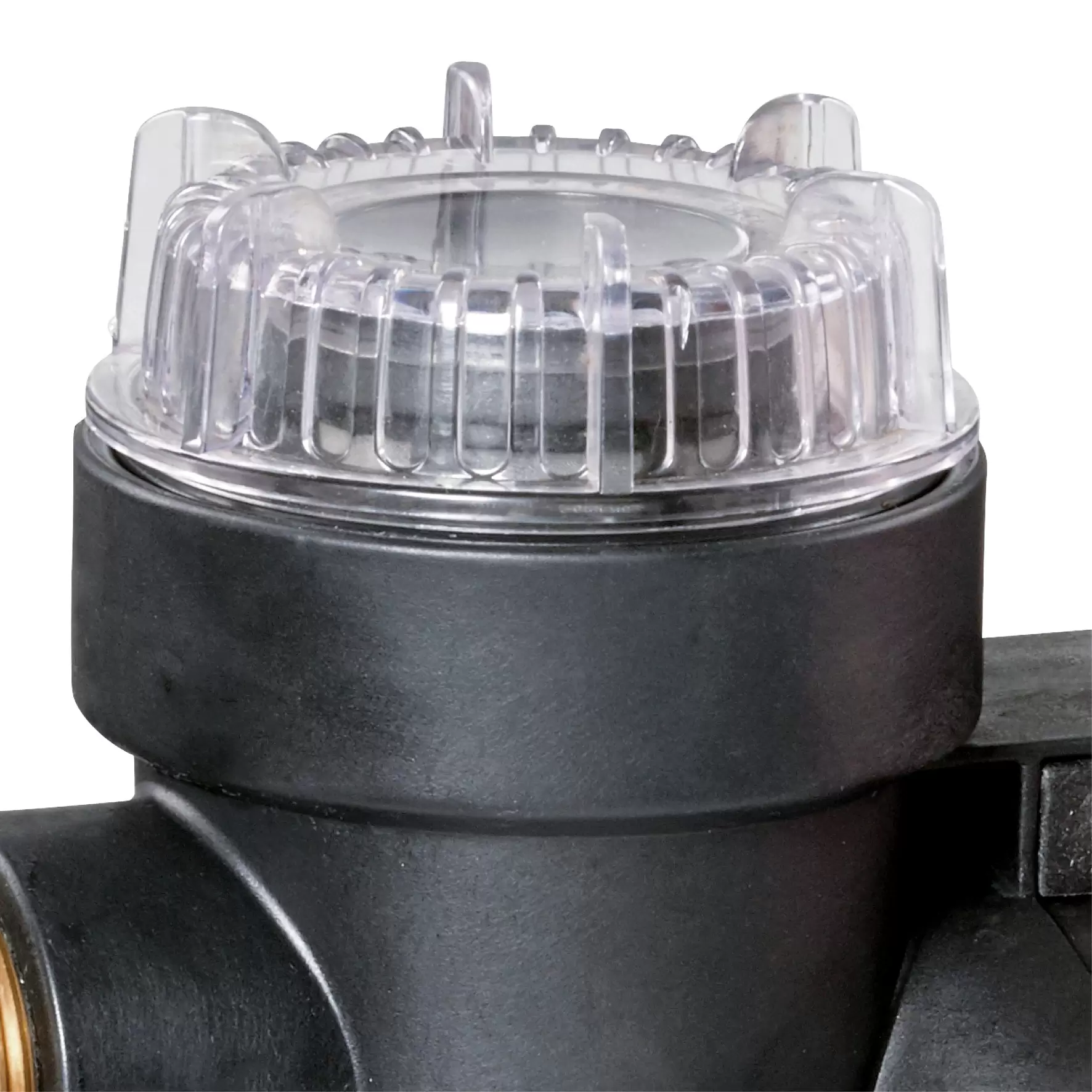

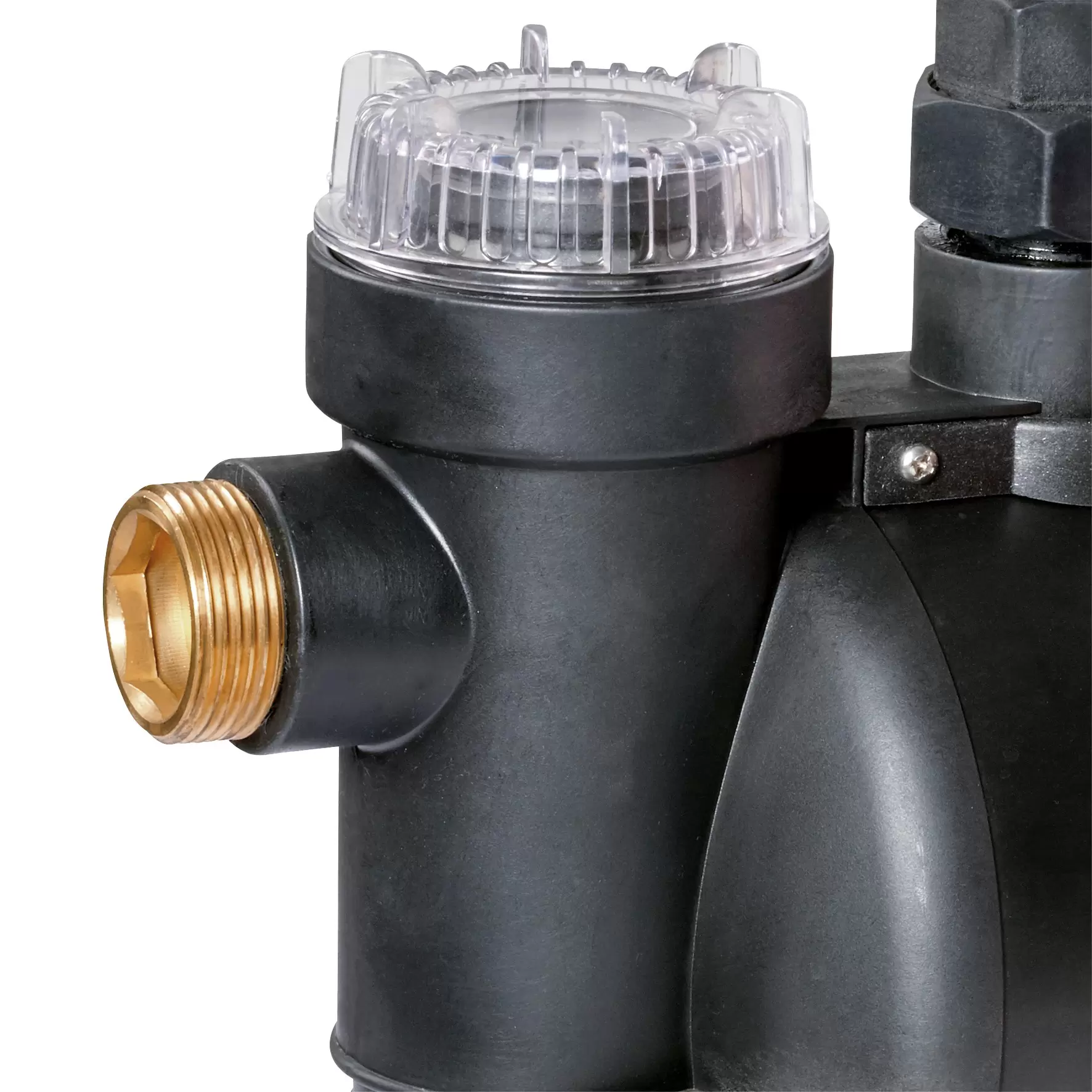

Close-up of the transparent pre-filter with brass connection on the Einhell automatic domestic water system GC-AW 6333.

For a long service life

Thanks to the pump’s built-in pre-filter, impurities in the intake do not cause any damage.

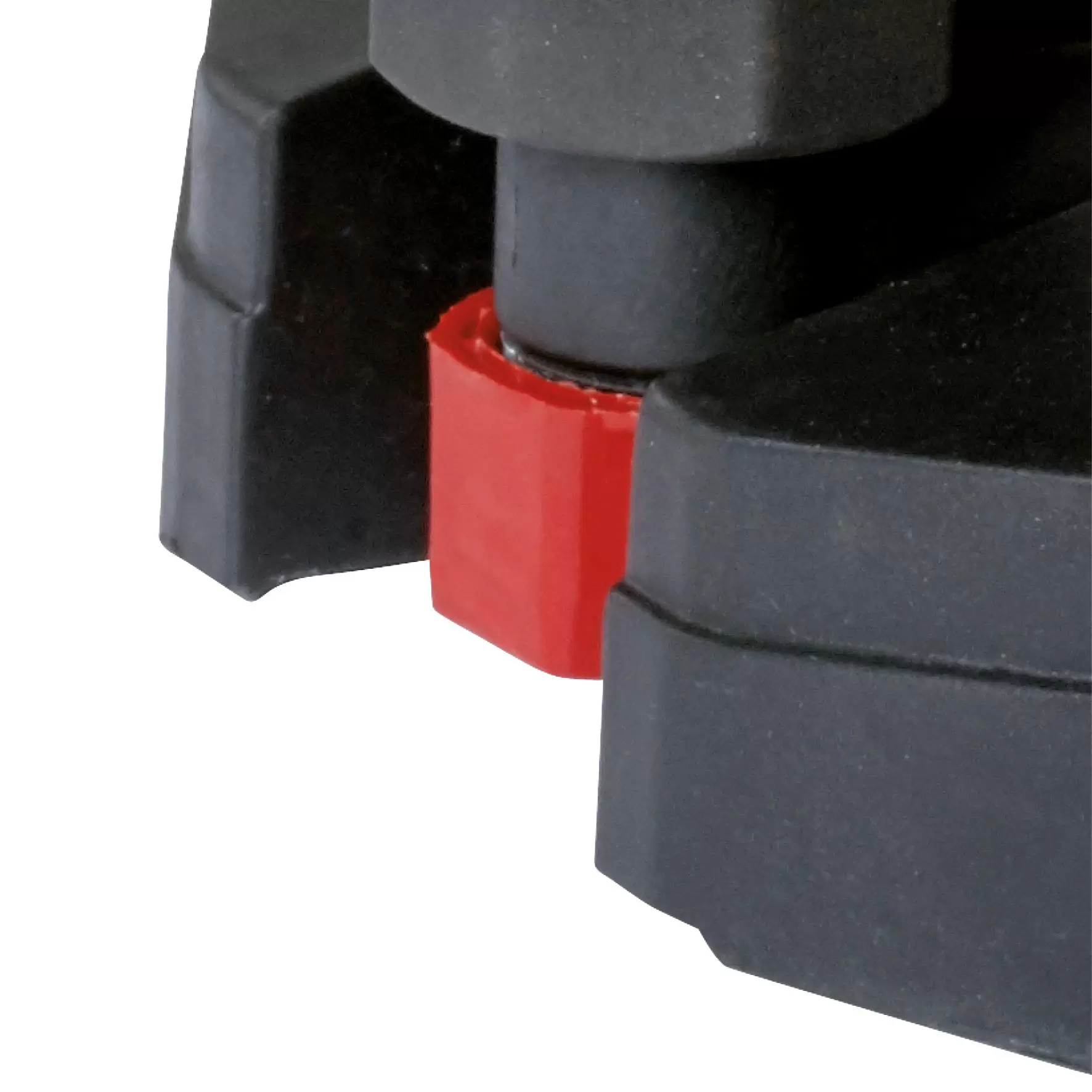

Drain plug with a red cap at the bottom of the Einhell automatic domestic water system GC-AW 6333.

Frost protection

To avoid damage during the cold season, any residual water can be emptied easily via the water drain plug.

Side view of the dry-running protection with LED display on the Einhell automatic domestic water system GC-AW 6333.

Protection against damage

The automatic domestic water pump has a dry-running protection to avoid damage due to the appliance overheating.

Using water efficientlyWater supply around the home and garden

The Einhell automatic domestic water pump GC-AW 6333 pumps clear water from reservoirs, wells and water shafts to supply irrigation systems such as lawn sprinklers, as well as providing service water for washing machines and toilet flushes.

What type of pump is it?

The automatic domestic waterworks is a surface pump, i.e. it is always located outside of the water and sucks in the water via a suction hose and then conveys it further via a pressure hose or garden hose.

What is the automatic domestic water system suitable for?

For watering (of plants and beds) in the garden or for automatic domestic water supply.

Can automatic domestic water systems also convey waste water?

No – automatic domestic water systems are only suitable for conveying clear water.

What needs to be considered when installing the pump?

The pump must be filled with water before use. (Caution: Pre-filter must be removed for filling!) It is also advisable to apply sealing tape to the inlet connection.
